µ Blaster

On hiatus for the time being.

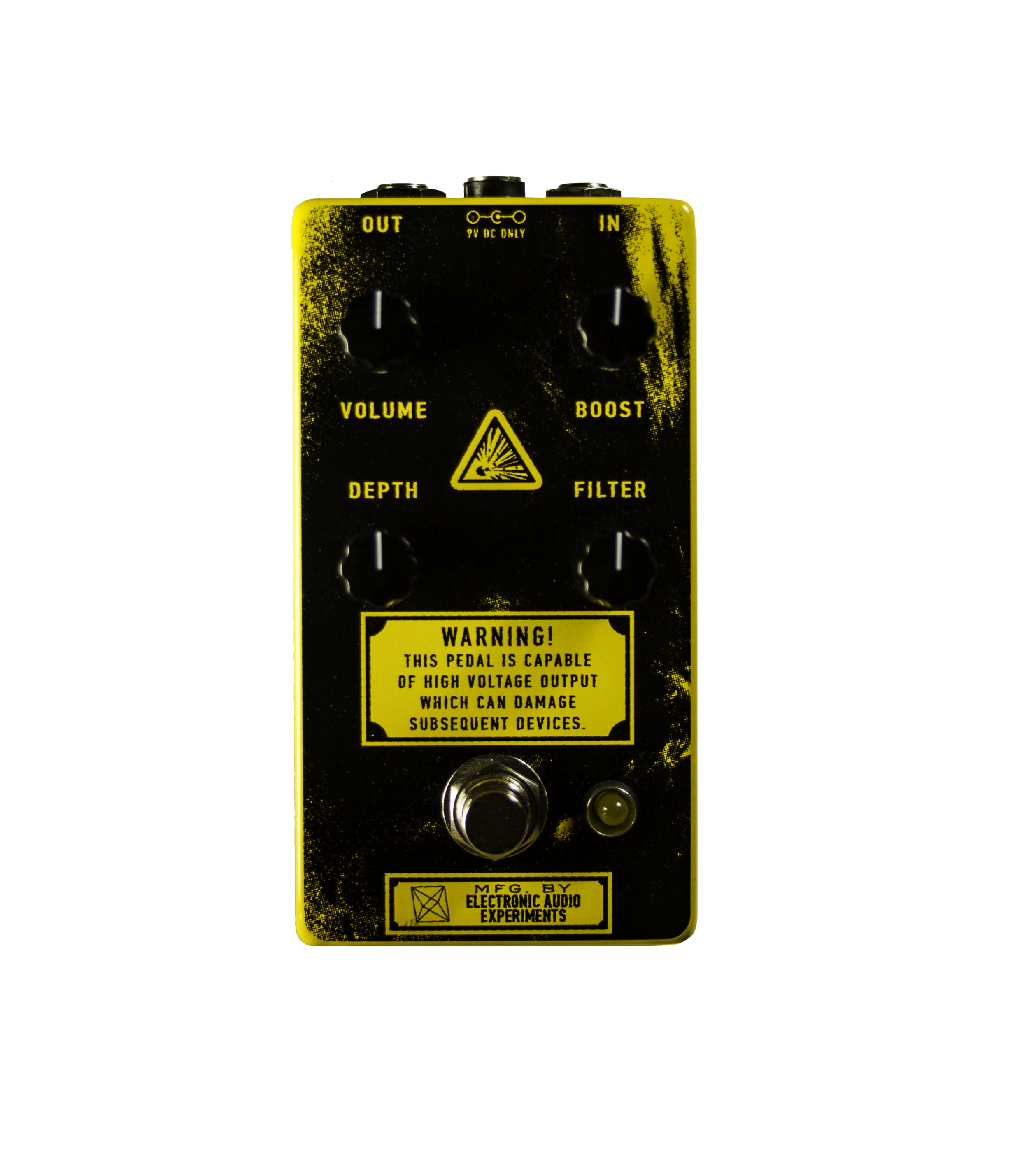

Named for its cascading stages of FET mu amps, the µ Blaster serves to do one thing - slam the input of an amplifier. By converting an incoming 9V power supply to about 27V, this boost/overdrive offers far more headroom than other comparable pedals. The end result is a pedal which has a character of its own, but operates like an extension of your amp.


  • Volume - self explanatory, can deliver a massive output. Use judiciously, as high levels can damage certain input stages!
  • Boost - adds additional saturation and presence. Counterclockwise is clean and relatively dark, while clockwise is brighter and moderately driven.
  • Filter - simple low-pass filter at the output. Useful for taming harmonic content from high Boost settings.
  • Depth - active bass control. Lower settings produce rangemaster-like tones with lots of chime, while higher settings allow a huge amount of bass through. At max depth and boost settings, there is an additional frequency boost in the 50-100Hz range, right in the fundamental for heavier styles.

Additional features include true bypass switching, top jacks, and a standard 9V DC center negative power jack.

All µ Blasters come with the standard limited warranty.


Version 2 (November 2016, current)

  • Layout updated for 125B enclosure
  • Depth rotary changed to depth pot for continuous rather than discrete control
  • Increased usability of filter control

Version 1 (Spring and Summer 2016)

  • Original release with etched enclosures
